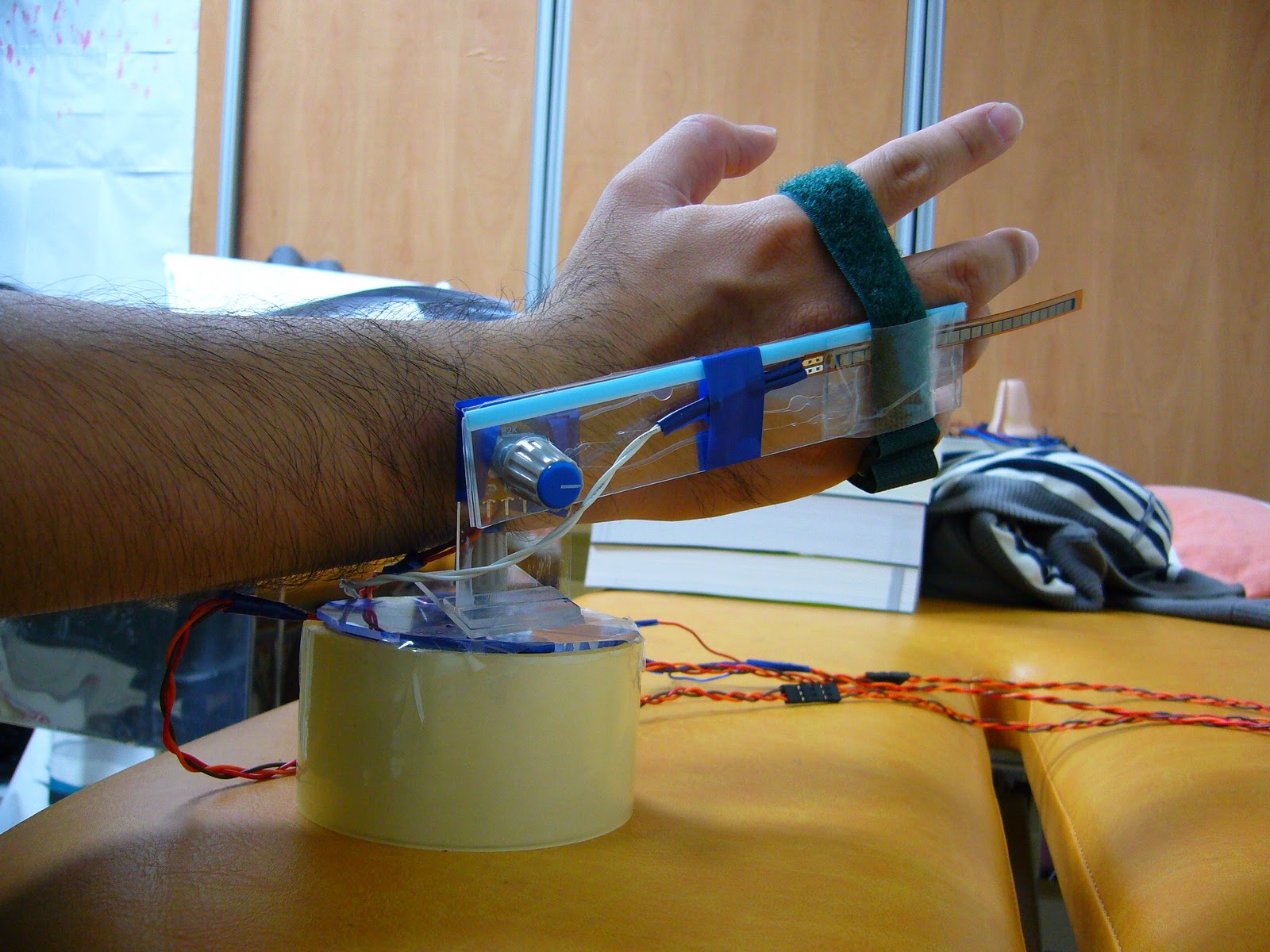

I made it to control my robotic arm originally. However, it's bad looking, so I used wii nunckuk instead.
##CONTINUE##
Yesterday, I was thinking how I can do to simply model hand motion and display in computer screen. I am not good at 3D painting, so I used RGB cube that I saw some people used it to demonstrate some programs. You can also find the processing code from the above link.

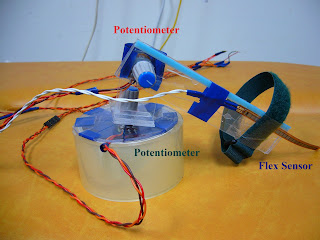

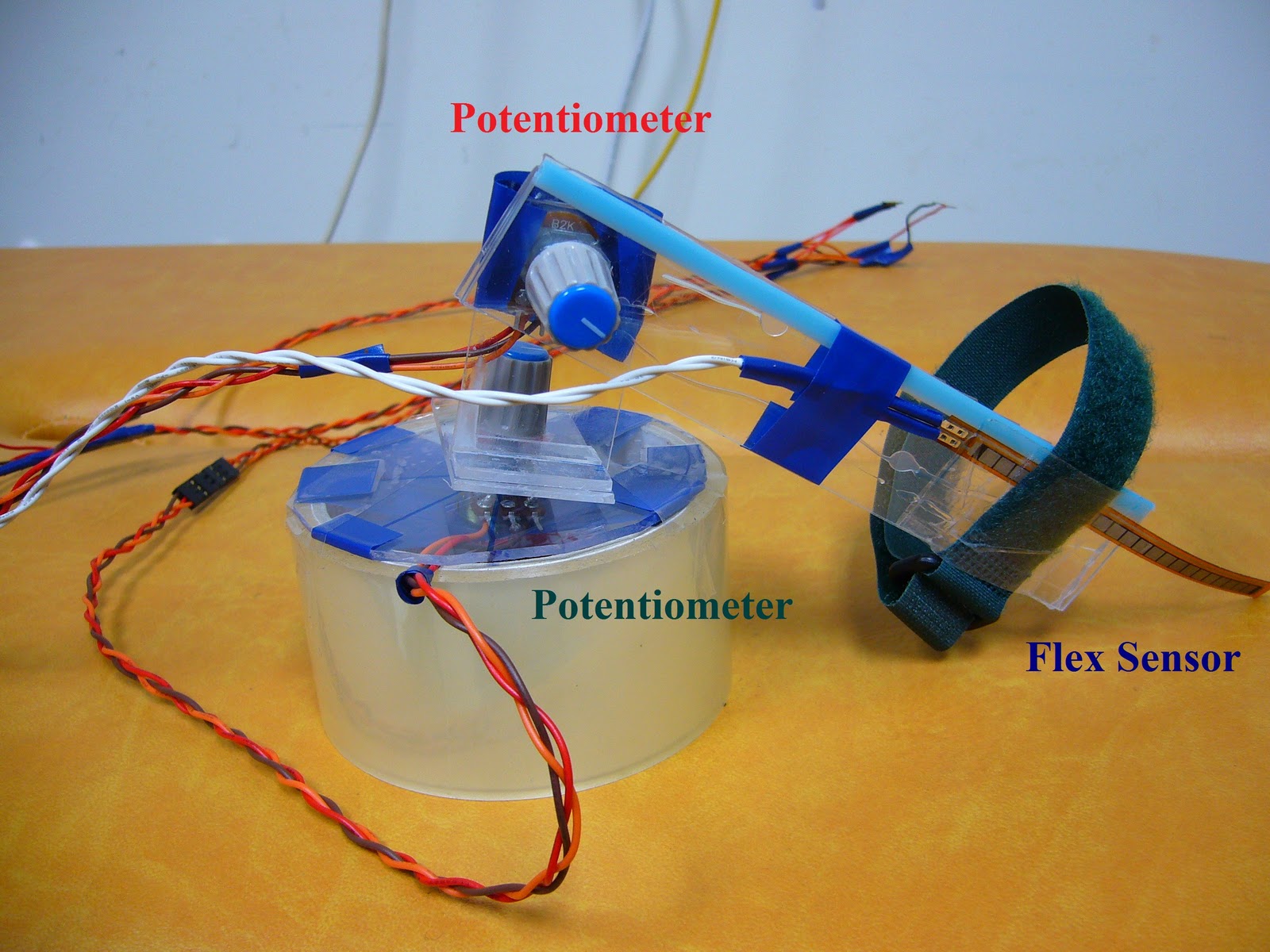

In this simple project, I used two potentiometers to control two axises. I am sorry that I don't have any idea to use the flex sensor, but I pasted it before, so I did not take it out.
Here is the code in arduino board:
int val_1; //flex sensor
int val_2; //middle potentiometer
int val_3; //bottom potentiometer
void setup()
{
Serial.begin(9600);
}
void loop()
{
val_1=analogRead(0);
val_2=analogRead(1);
val_3=analogRead(2);
val_2=map(val_2,340,1023,0,360);
val_3=map(val_3,0,1023,640,0);
To2bytes(val_2);
To2bytes(val_3);
/*
Serial.print(val_1);
Serial.print("\t");
Serial.print(val_2);
Serial.print("\t");
Serial.println(val_3);
*/
delay(200);
}
void To2bytes(unsigned int inX){
byte H_Byte;
byte L_Byte;
// int a=B01111111
H_Byte=inX>>8;
L_Byte=(inX%256);
Serial.print(H_Byte,BYTE);
Serial.print(L_Byte,BYTE);
}
And I only add some codes in RGB cube code.
In void setup
println(Serial.list());// List all the available serial ports myPort = new Serial(this, Serial.list()[1], 9600); //You have to import serial class before. //import processing.serial.*; //Serial myPort; // The serial port
In void draw()
int[] inByte = new int[4];
while (myPort.available() == 4) {
inByte[0]= myPort.read();
inByte[1]= myPort.read();
inByte[2]= myPort.read();
inByte[3]= myPort.read();
inY=(inByte[0]<<8)+inByte[1];
inX=(inByte[2]<<8)+inByte[3];
print("X" +inX);
print("\t");
println("Y" +inY);
}
